Switching Capacity
Choose the port density that matches your network while retaining the same 100G uplink architecture and comprehensive switching feature set.

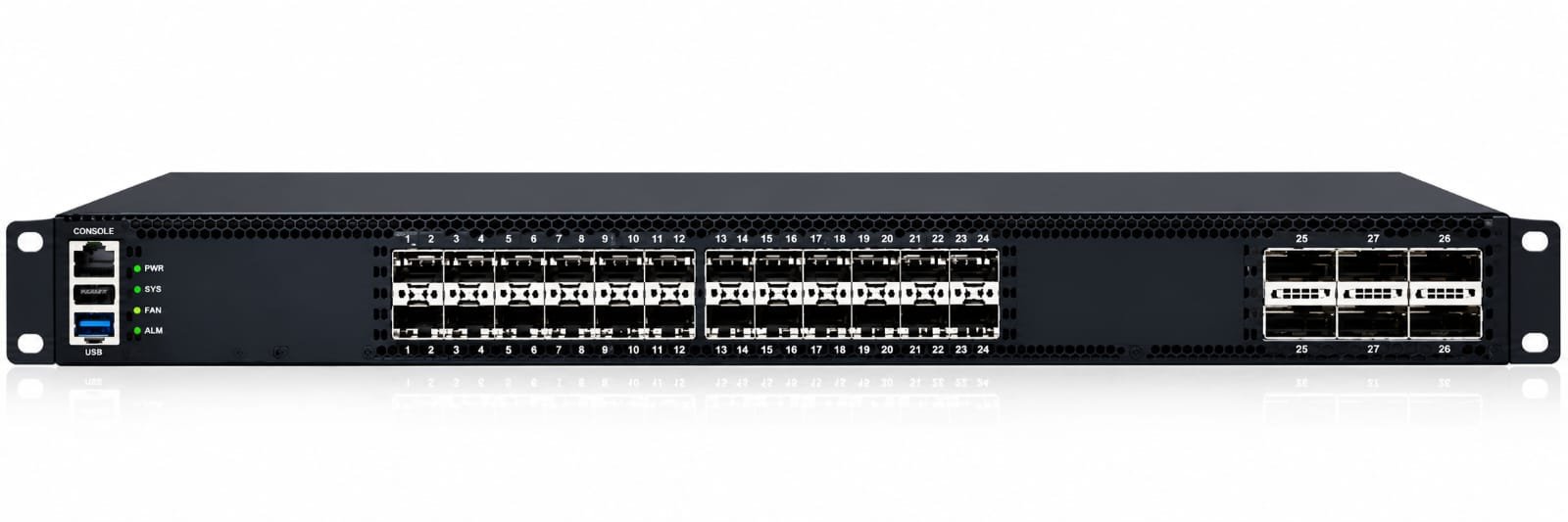

Compact 24-port Layer 3 Ethernet switch for core and aggregation deployments that need dense multi-gigabit fibre access with six 100G uplinks.
| 24 ×1G / 2.5G / 10G SFP+ ports | 6 ×40G / 100G QSFP28 ports |
| 1.68 TbpsSwitching capacity | 600 MppsForwarding rate |
| 32KMAC address table | 200 WMaximum system power |

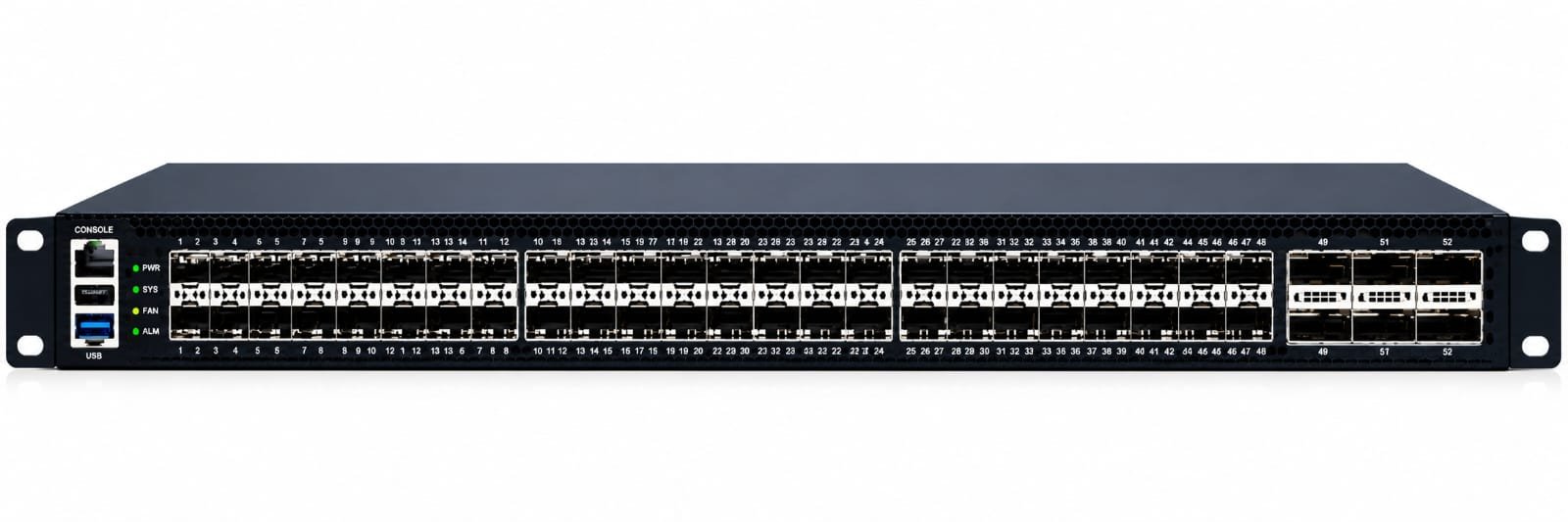

High-density 48-port Layer 3 Ethernet switch for aggregation and core environments requiring greater 10G fibre density and high-speed 100G uplinks.
| 48 ×1G / 2.5G / 10G SFP+ ports | 6 ×40G / 100G QSFP28 ports |
| 2.16 TbpsSwitching capacity | 600 MppsForwarding rate |
| 32KMAC address table | 230 WMaximum system power |
100G
L3
Base IPv4/IPv6 routing with advanced routing options including OSPF, BGP4+, VRRP, PIM and policy-based routing.
50
ITU‑T G.8032 Ethernet Ring Protection supports sub‑50 ms convergence for resilient Ethernet architectures.
IPv6
IPv6 management, security, multicast and routing functions support modern dual-stack network deployments.
QoS
Classification, rate limiting, traffic scheduling and ACL capabilities help protect service quality.
PSU
Dual power-supply architecture supports resilient deployments in critical enterprise and infrastructure networks.
| SPECIFICATION | ATHENA 3624C | ATHENA 3648C |
|---|---|---|
| 1G / 2.5G / 10G SFP+ ports | 24 | 48 |
| 40G / 100G QSFP28 uplinks | 6 | 6 |
| Switching capacity | 1.68 Tbps | 2.16 Tbps |
| Forwarding rate | 600 Mpps | 600 Mpps |
| Flash / DRAM | 8 GB / 4 GB | 8 GB / 4 GB |
| Packet buffer | 6 MB | 6 MB |
| MAC address table | 32K | 32K |
| Maximum system power | 200 W | 230 W |
| Operating temperature | -5°C to +50°C | -5°C to +50°C |
From Layer 2 resilience to Layer 3 routing, security, QoS and management — one platform covers the full feature set.
A strong Layer 2 foundation for scalable enterprise, campus and service-provider aggregation networks.
IPv4 and IPv6 routing capabilities for flexible network design and resilient core operation.
Integrated controls help protect access, management and forwarding planes.
Traffic engineering and operations capabilities help maintain service quality and simplify troubleshooting.
Multiple local and remote management options support deployment, monitoring and lifecycle operations.
01
High-bandwidth switching between access, aggregation and enterprise backbone layers.
02
03
