Delivering High-Performance Metro Edge Connectivity

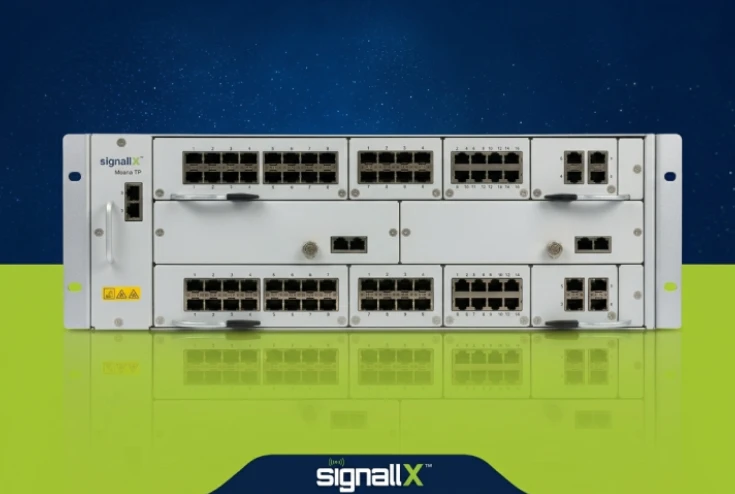

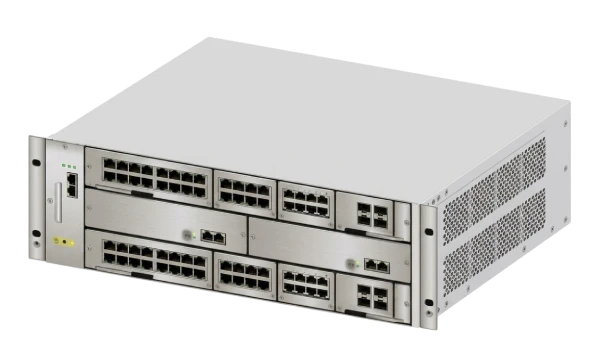

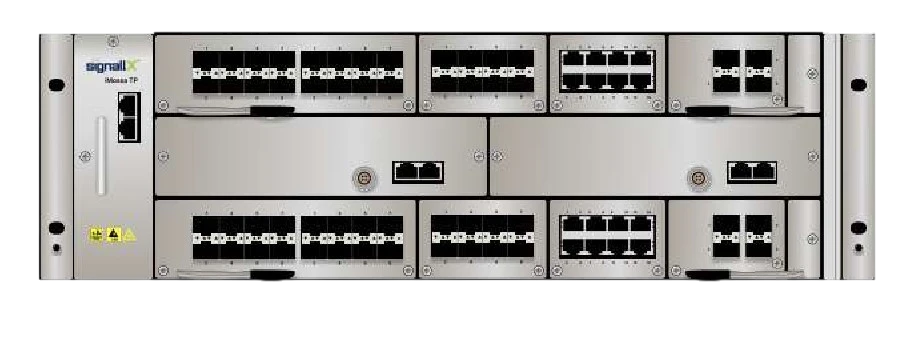

The ever-growing demand for bandwidth presents a significant challenge for network operators. The SignalLX iMossa TP MPLS-TP Router is designed to address this challenge with an advanced MPLS-TP and Carrier Ethernet (CE 2.0) transport solution. Engineered for high-density metro edge applications, it delivers exceptional performance within a compact 3.5U Rackmount chassis. With its modular and scalable design, this solution efficiently supports broadband services across business, residential, and mobile networks while ensuring simplified deployment and streamlined operations.
For networks with precise synchronization requirements, such as LTE-TDD, the SignalLX iMossa TP MPLS-TP ROUTER offers a comprehensive range of timing features. It supports multiple external timing sources, including 2MHz, 2Mbps, and 1PPS, and is fully compatible with ITU-T G.8262 Synchronous Ethernet and IEEE 1588v2.
The system provides Boundary Clock (BC), Transparent Clock (TC), and Ordinary Clock (OC) functionalities, ensuring precise synchronization for latest network technologies beyond LTE-A and 5G.
The SignalLX iMossa TP MPLS-TP ROUTER features a flexible architecture tailored to meet various network demands. Offering a switching capacity of 260G, the system can accommodate up to two motherboards.
Each motherboard includes:
With a comprehensive suite of traffic management, Quality of Service (QoS), OAM, and protection features, the SignalLX iMossa TP MPLS-TP ROUTER effortlessly integrates into any packet network environment.
Its robust Carrier Ethernet and MPLS-TP OAM functionalities such as Y.1731, G.8113.1/8113.2, 802.3ah, 802.3ag, and ITU-T Y.1731-ensure reliable and efficient transport while maintaining Service Level Agreement (SLA) performance.
Additionally, it supports an extensive range of protection mechanisms, including:
Featuring a scalable design, advanced switching, and intuitive management tools, the router is optimized for seamless service provisioning and aggregation.
| FEATURES | SPECIFICATIONS |
|---|---|
| 10 GE | Up to 56 Nos. |
| 1 GE | Up to 80 Nos. |
| 10/100/1000 Base T | Up to 80 Nos. |
| STM-1/4 | Up to 24 Nos. |
| STM16 | Up to 12 Nos. |
| STM64 | Up to 06 Nos. |
| E1 | Up to 96 Nos. |
| E3 | Up to 18 Nos. |
| Clock / TOD Ports | 02 Nos. |
| NMS | 01 Nos. |
| ALM | 01 Nos. |
| Switching Capacity | 260 GBPS |
The SignalLX iMossa TP MPLS-TP ROUTER offers integrated pseudo-wire (PWE3) functionality & native E1/ STM-1 interfaces, enabling the seamless transition of established circuit-switched services over an packet-optical-transport network. It is an ideal solution for migrating from legacy SONET/SDH networks to a modern, packet-based architecture. With multiple upgrade paths and user-friendly operational frameworks, the platform ensures consistent network performance and future- ready adaptability.
With its intelligent architecture, flexible deployment options, and robust feature set, the SignalLX iMossa TP MPLS-TP Router is a cutting-edge solution that enables network operators to build resilient, high-performance networks for the future.
| FEATURES | SPECIFICATIONS |
|---|---|
| Static MPLS-TP |
|
| Full Carrier Ethernet Functions |
|
| Equipment Redundancy & Protection |
|
| Synchronization |
|
| Easy to deploy, Simple to Manage |
|
| Environmental Conditions |
|
| Power |
|
| Mechanical |
|
